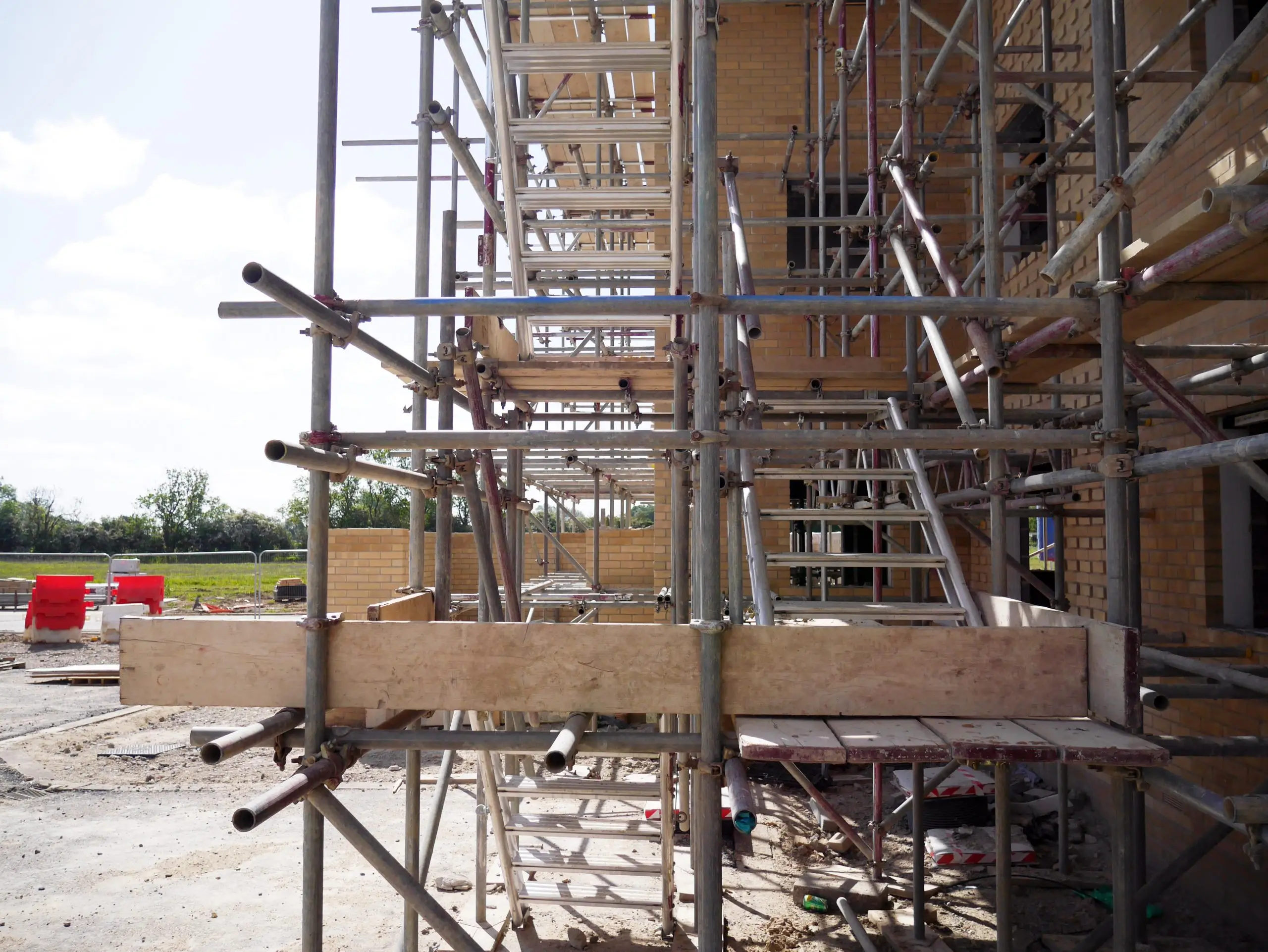

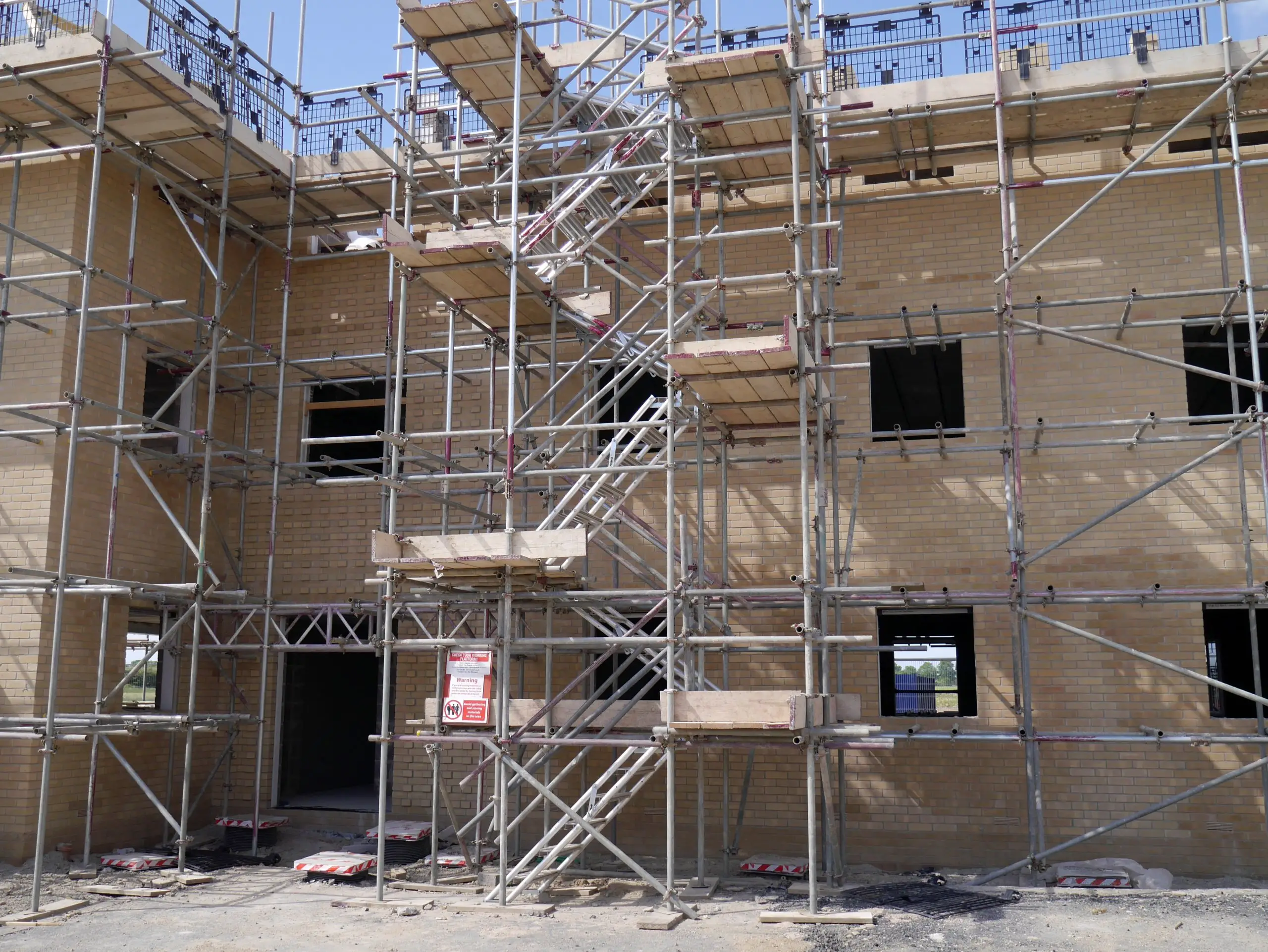

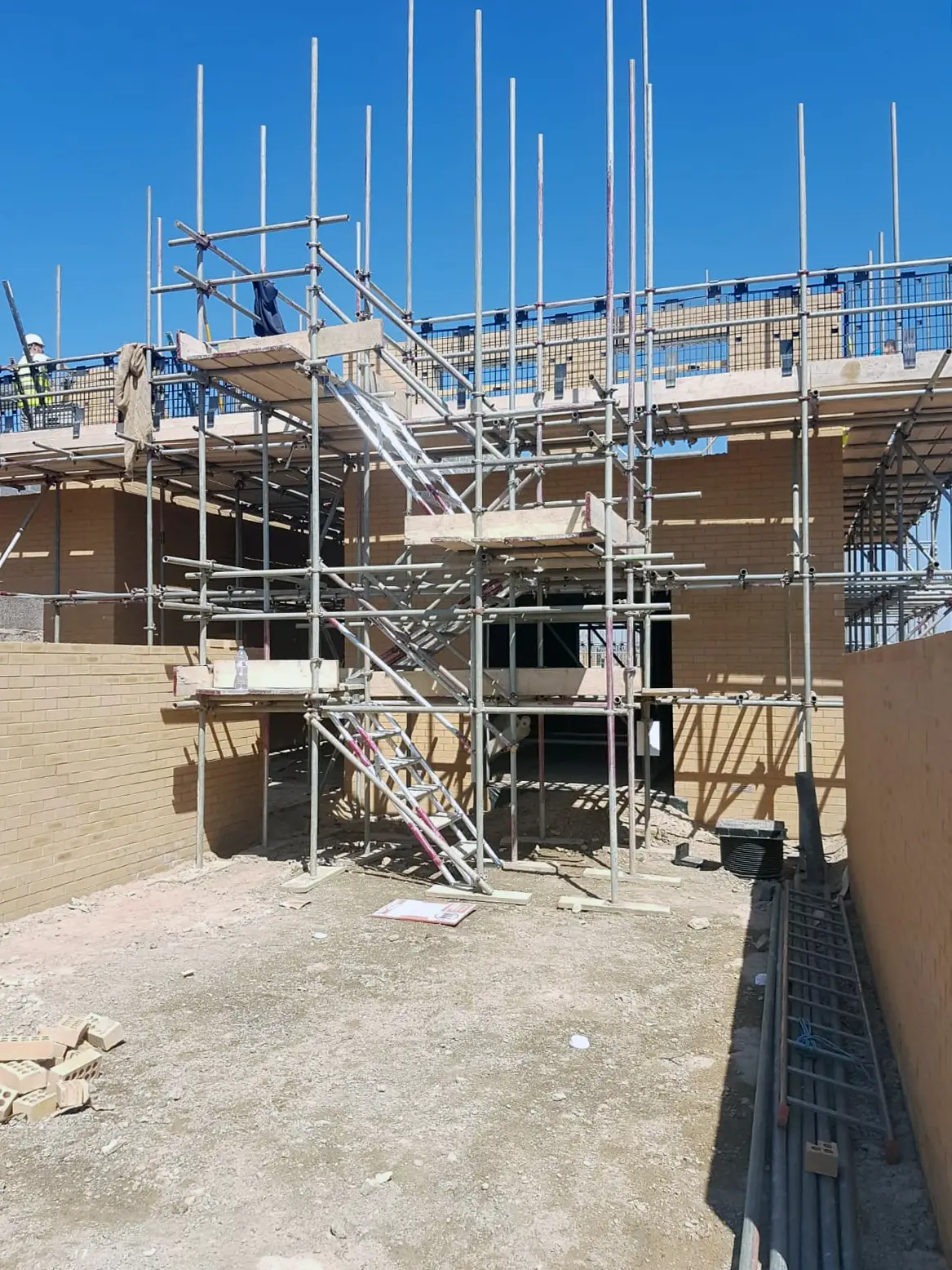

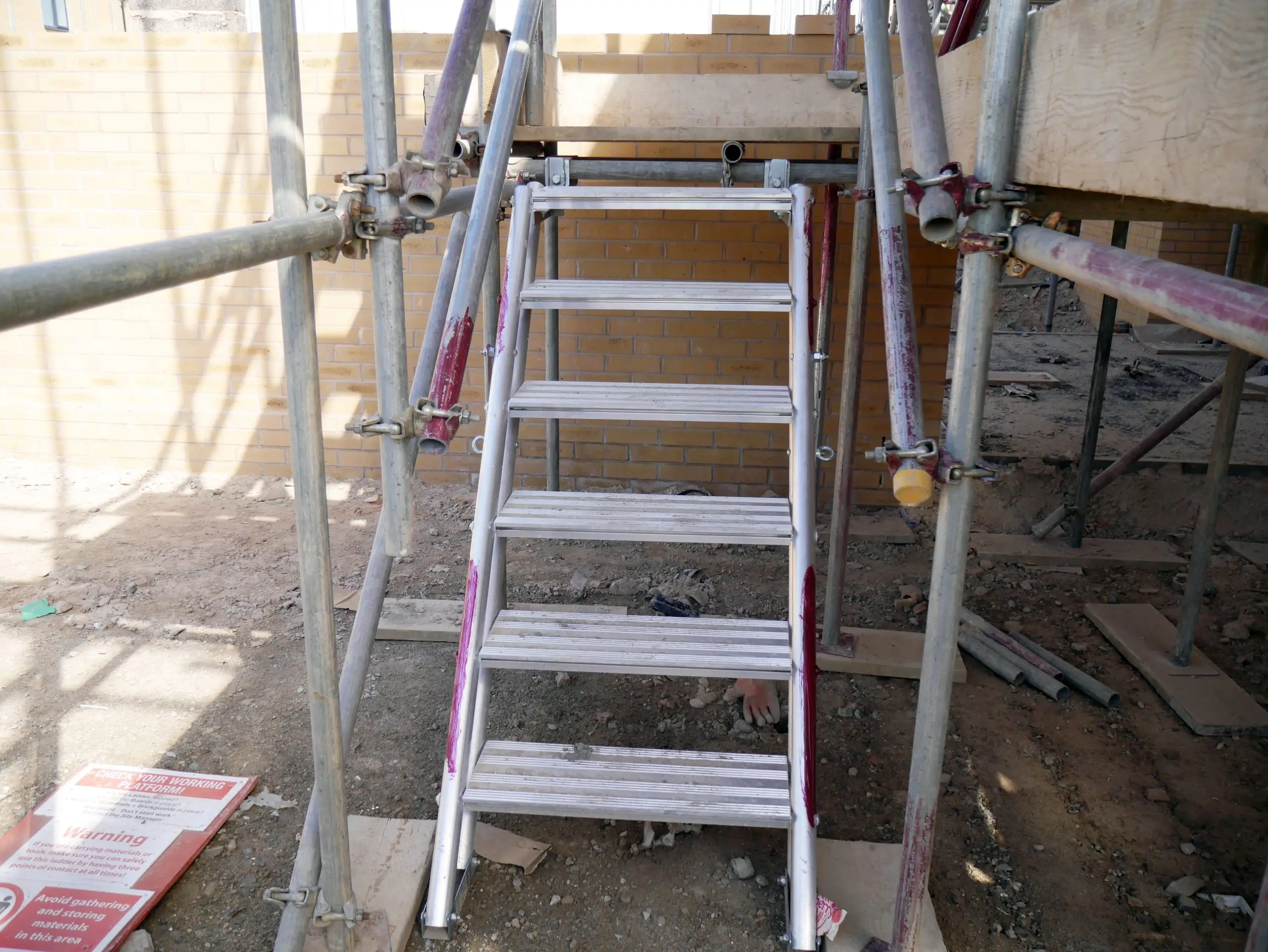

Alto Universal Scaffold Stair

DETAILS

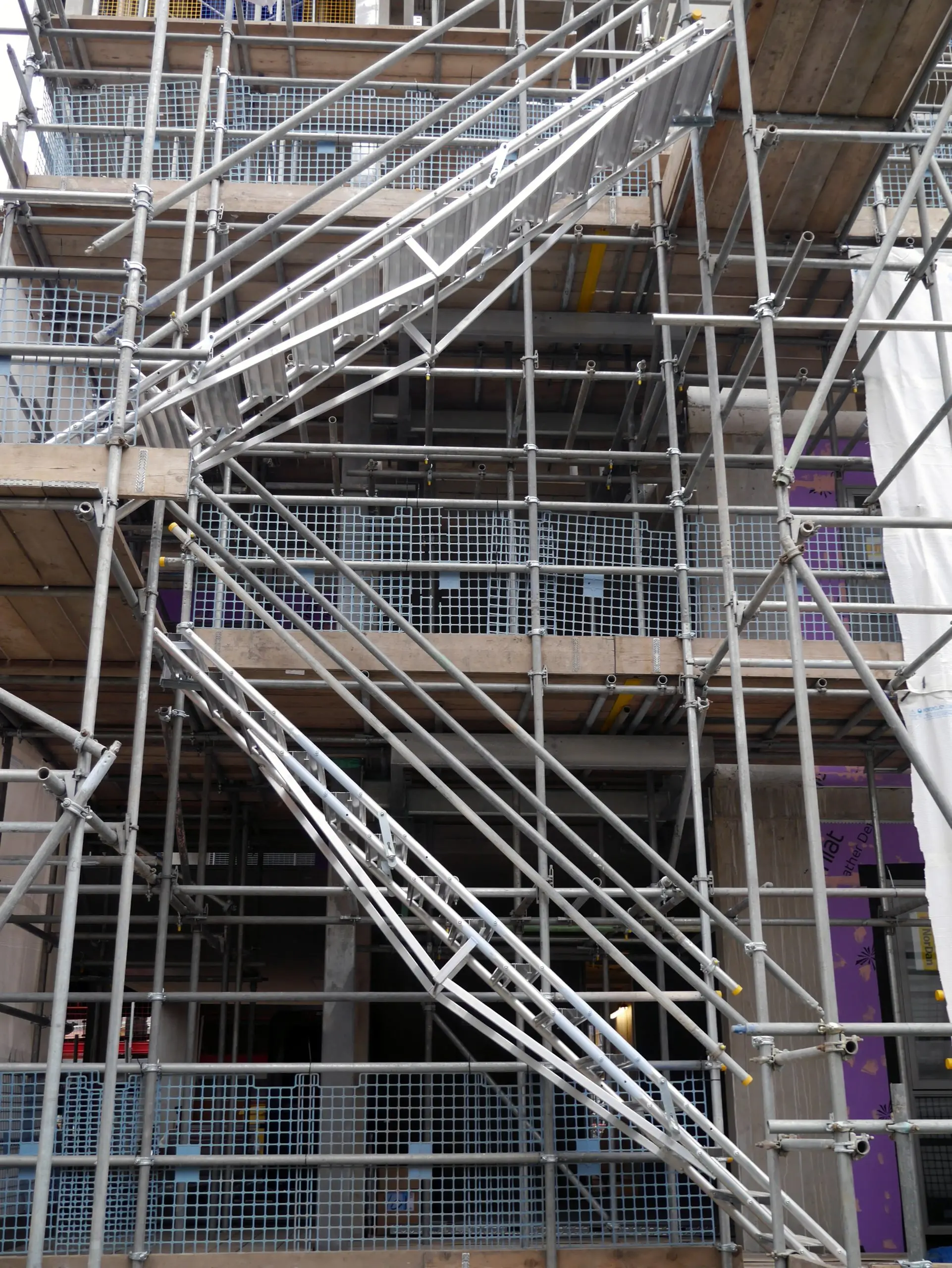

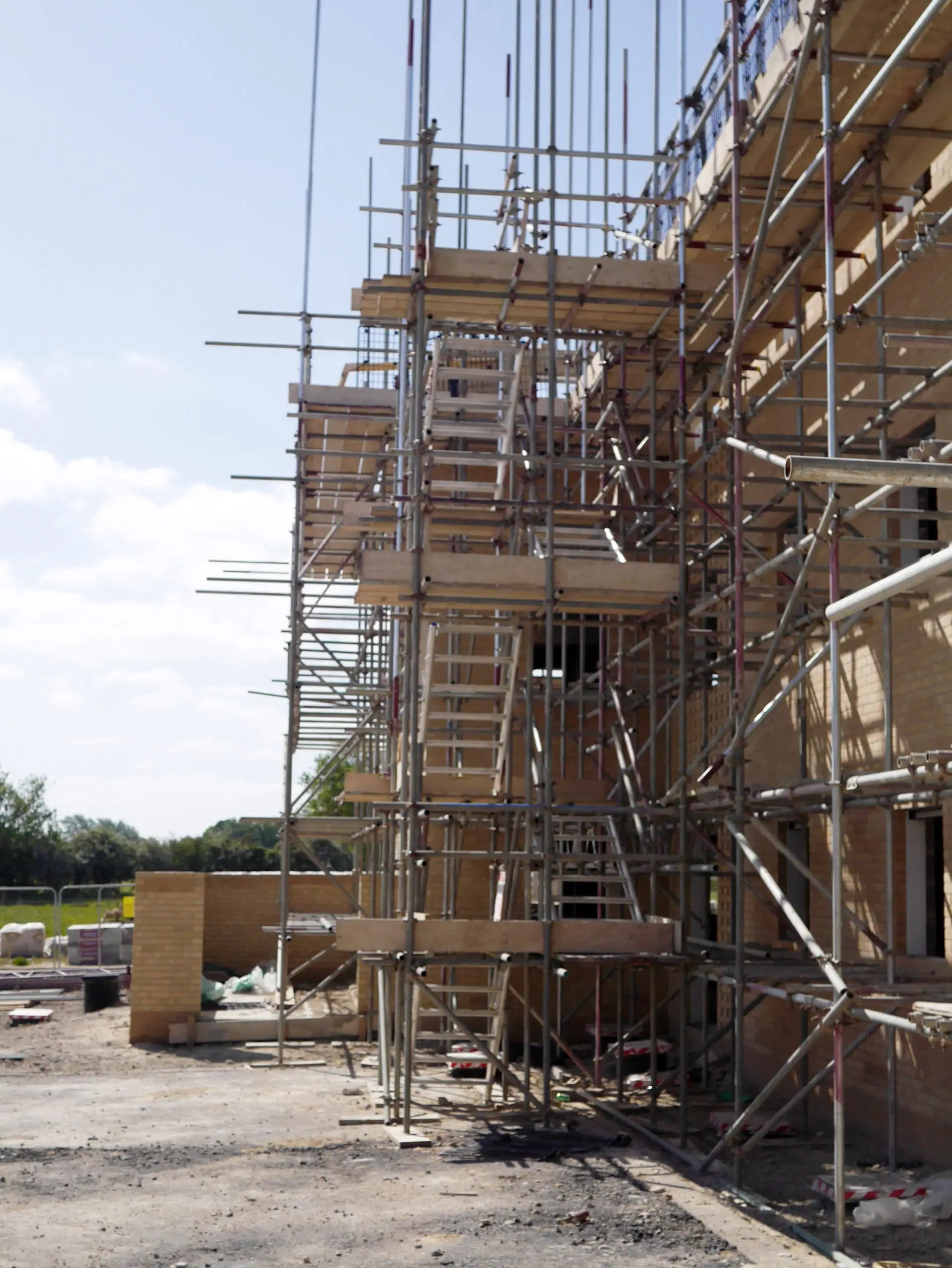

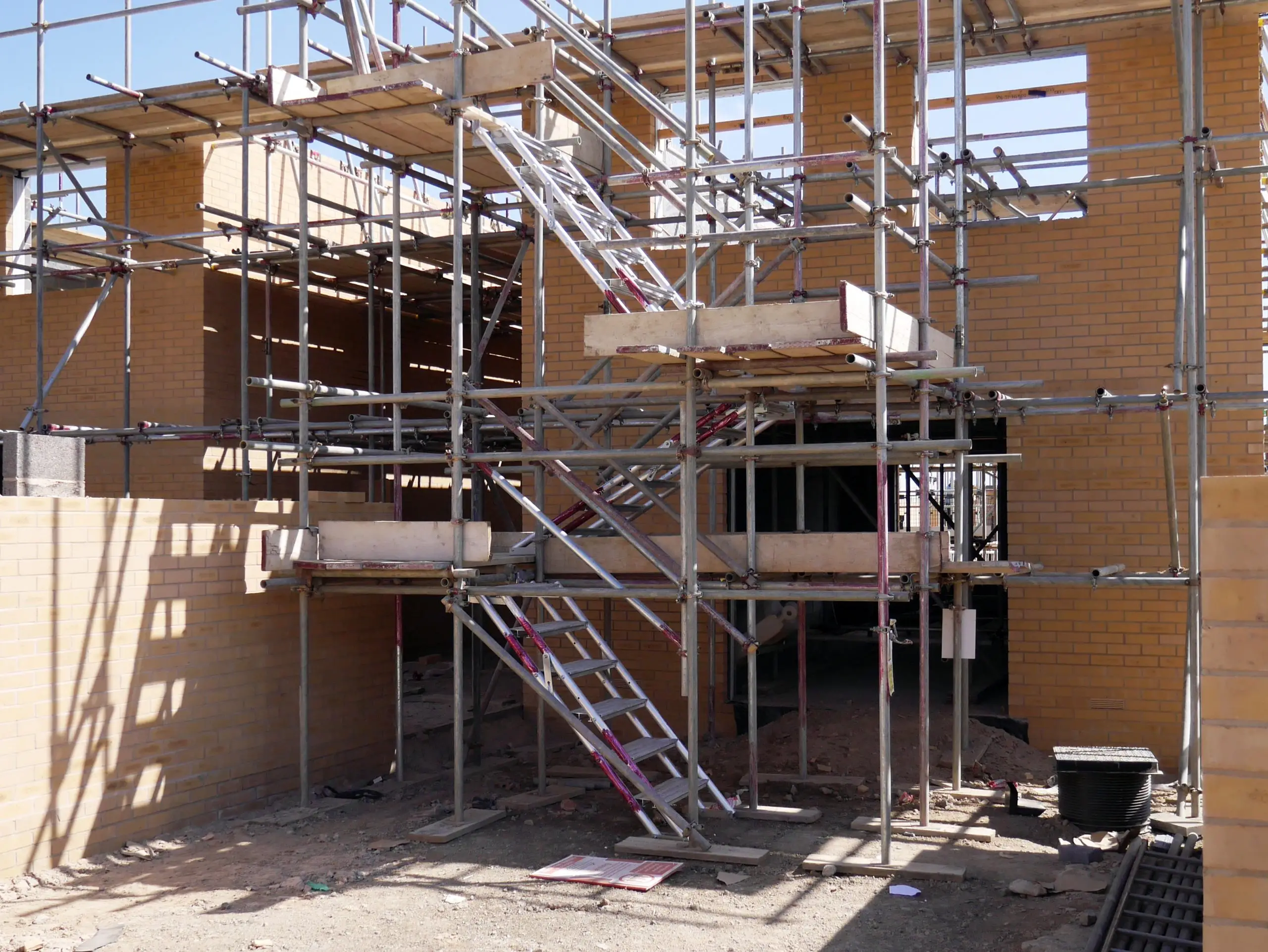

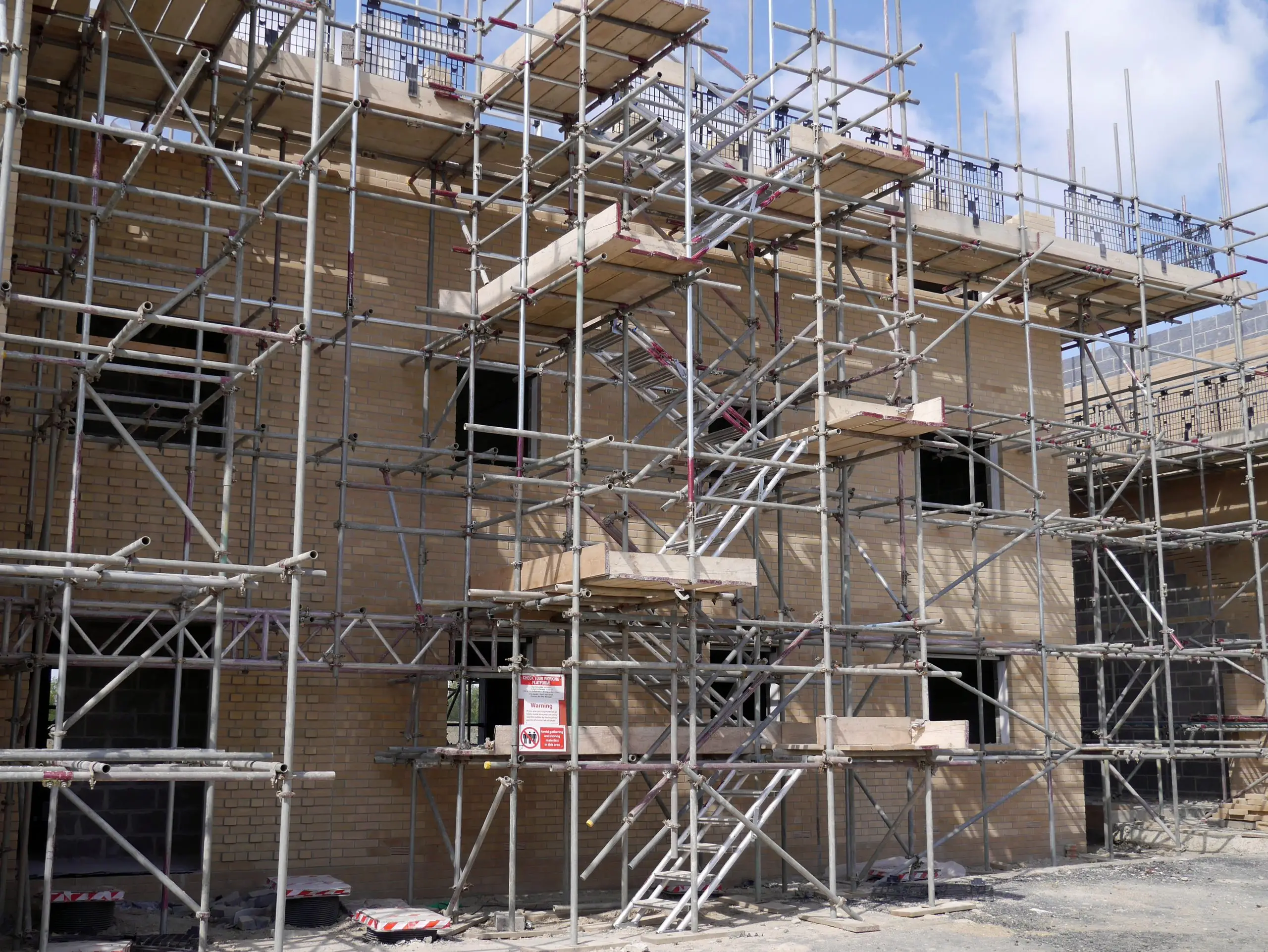

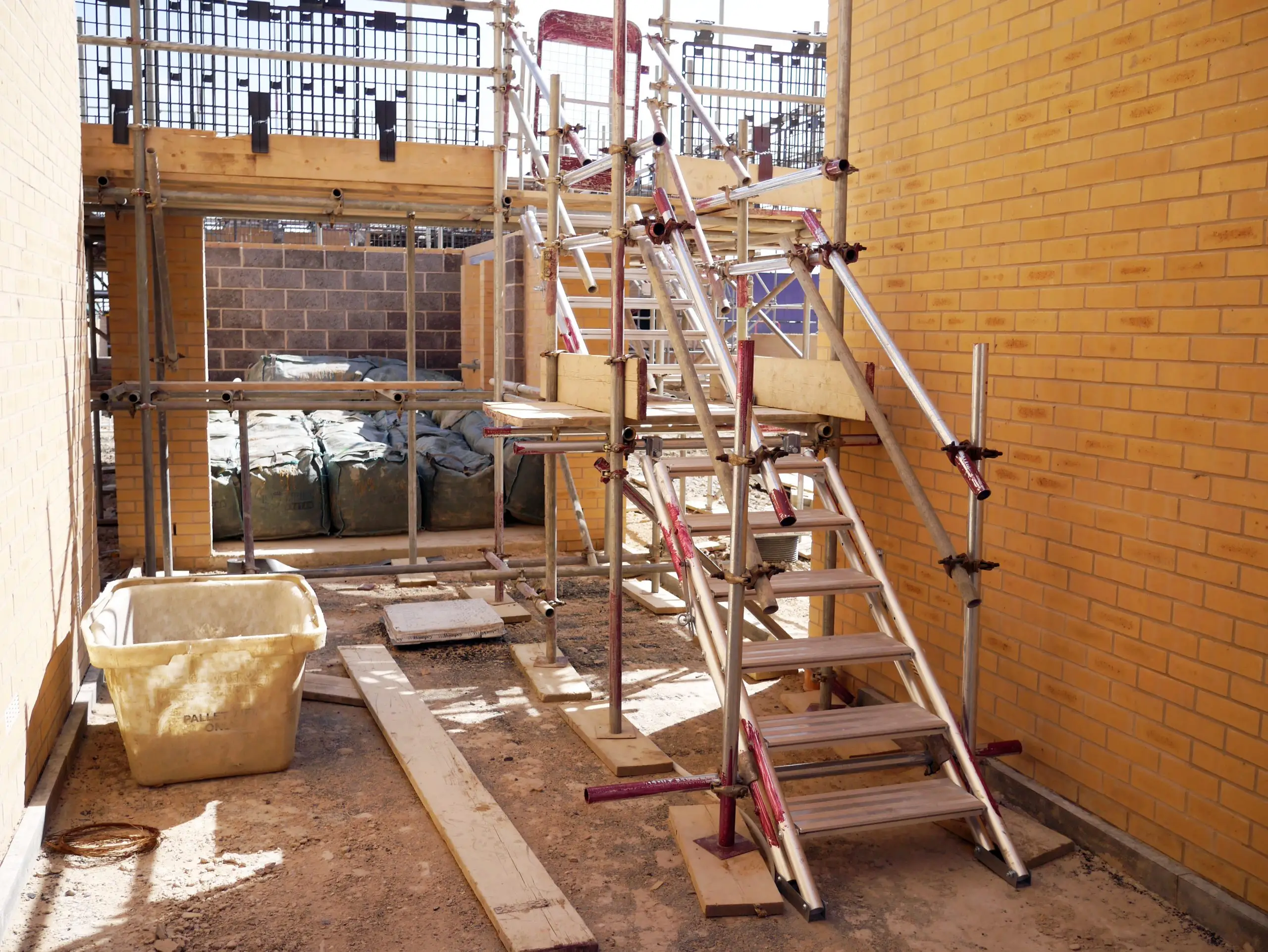

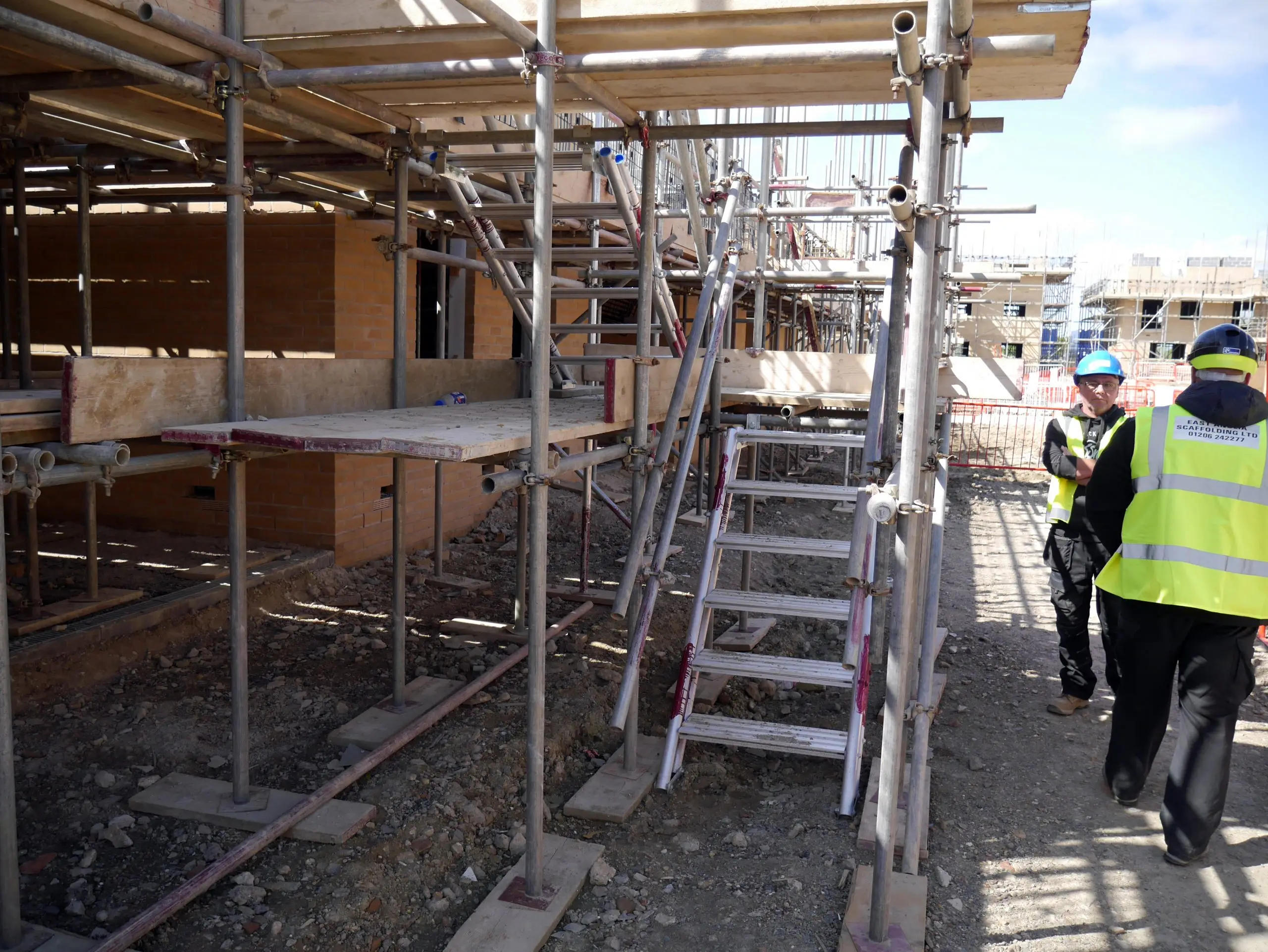

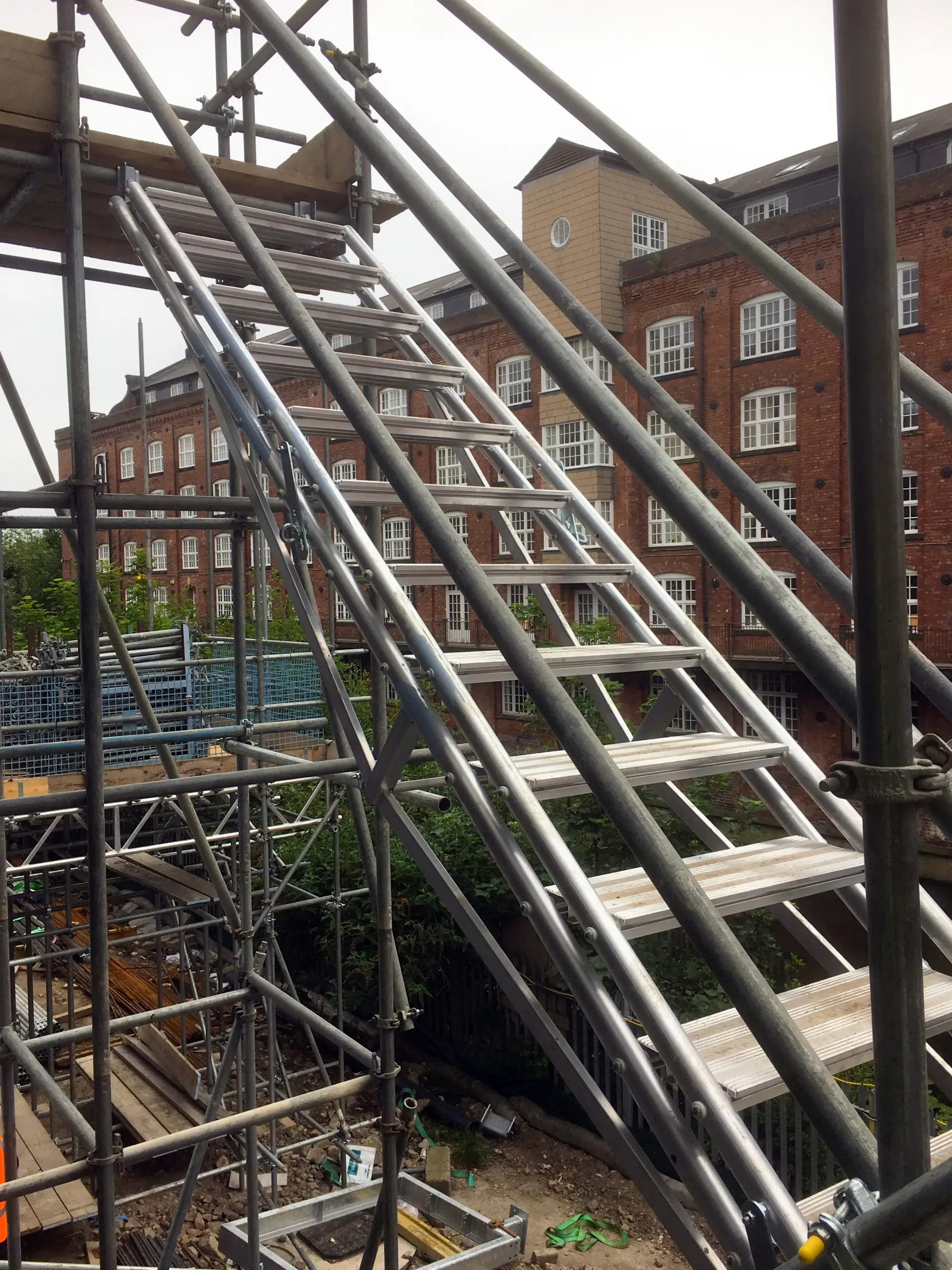

The Alto Universal Scaffold Stair is a modular aluminium stair system that can be used in conjunction with traditional tube and fitting equipment to create a totally compliant safe means of access & egress across a range of lift heights.

With six different sizes of stair unit, the Alto Universal Stair allows the scaffolder to create safe access solutions ranging in height from 0.4m to 3.4m and in any irregular lift height configuration required.

Its unique variable design provides the contractor with complete versatility and its pre-fabricated nature ensures that maximum productivity on site is maintained.

Manufactured in the United Kingdom using corrosion resistant, structural quality extruded aluminium; the Alto Universal Scaffold stair provides strength, reliability, durability and above all complete safety being fully compliant to BS EN 12811.

• 6 x Stair Unit sizes available (with handrails):

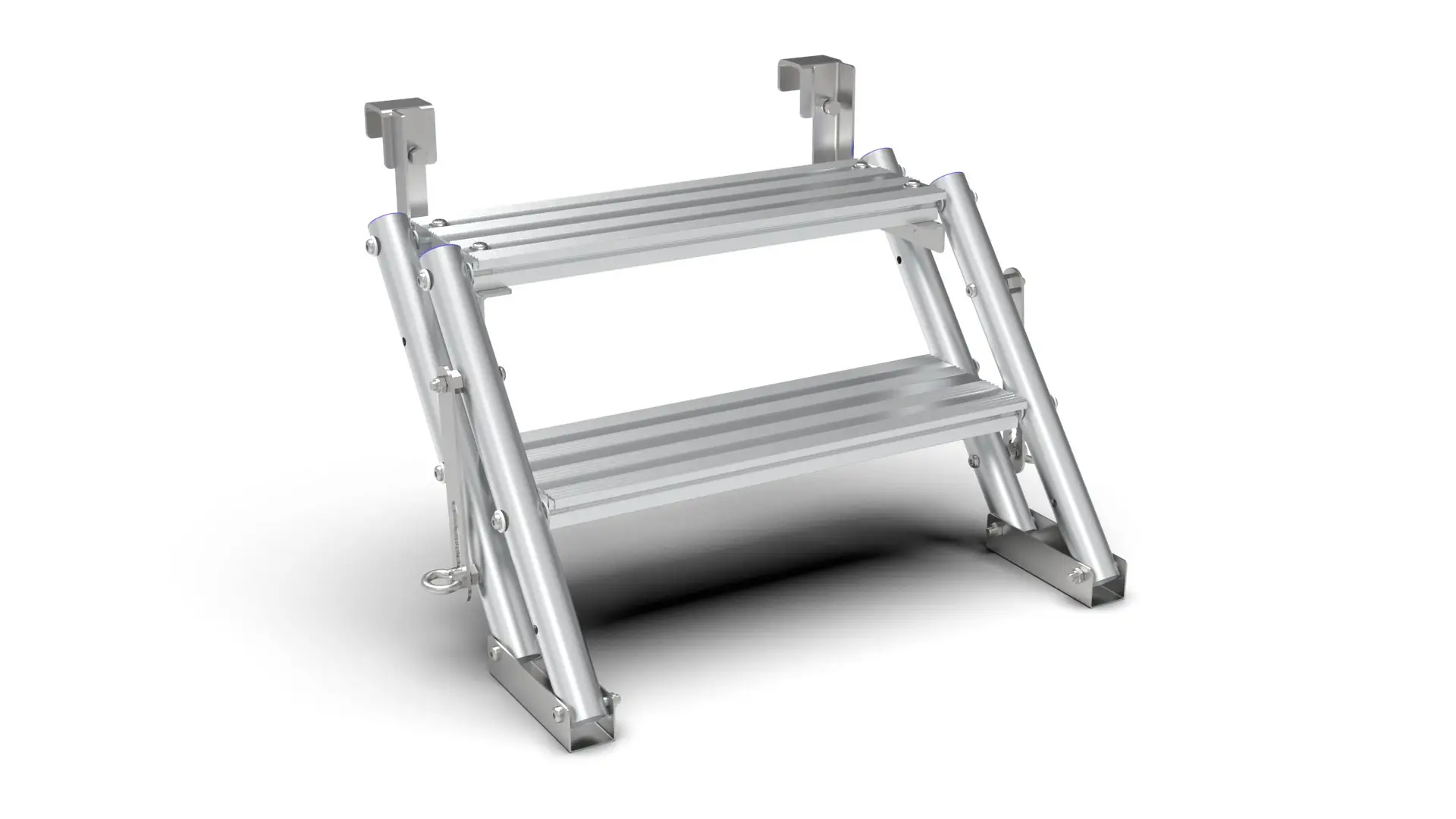

  • 2 Tread (Height adjustment 434-560mm)

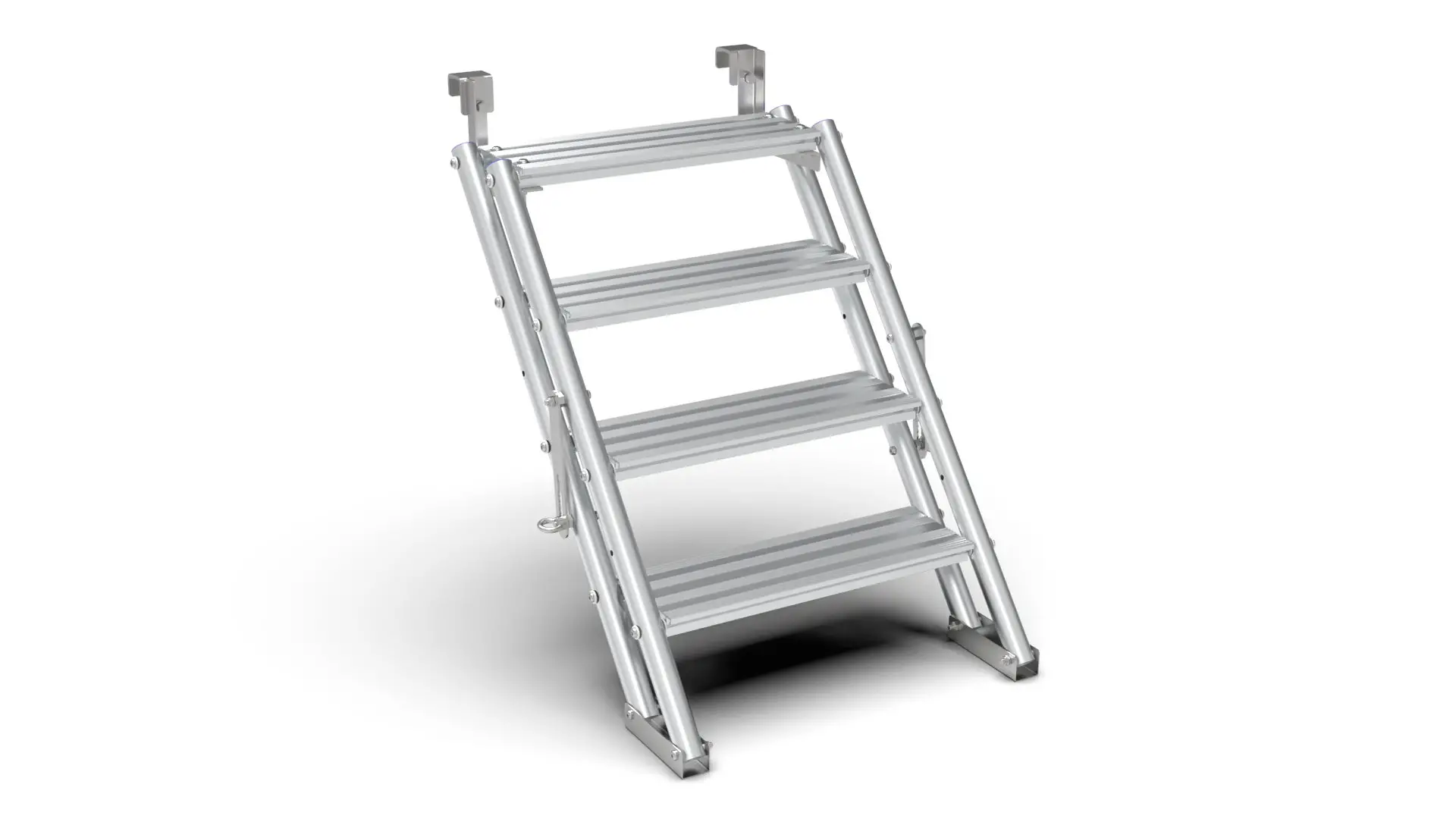

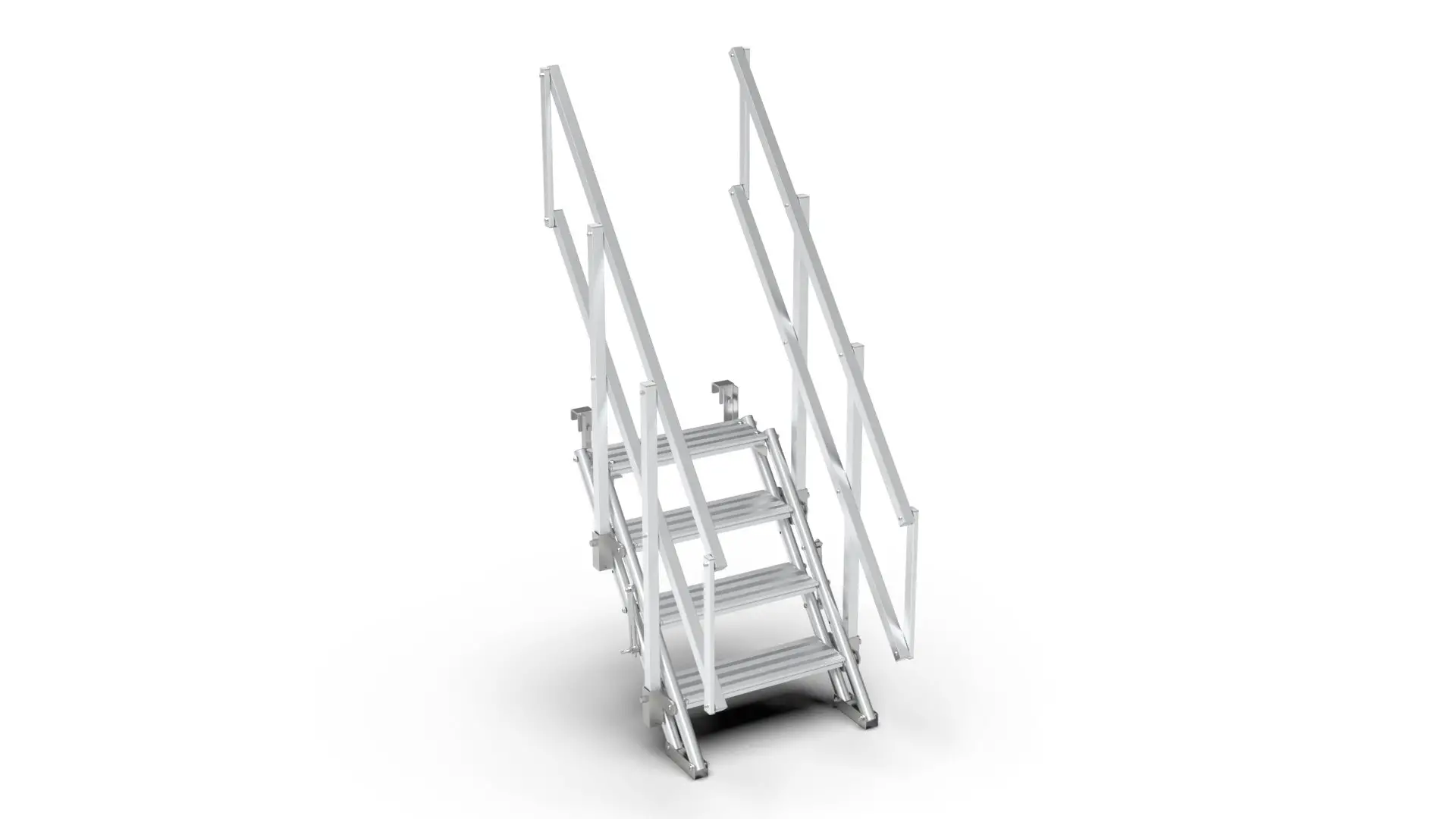

  • 4 Tread (Height adjustment 732-1001mm)

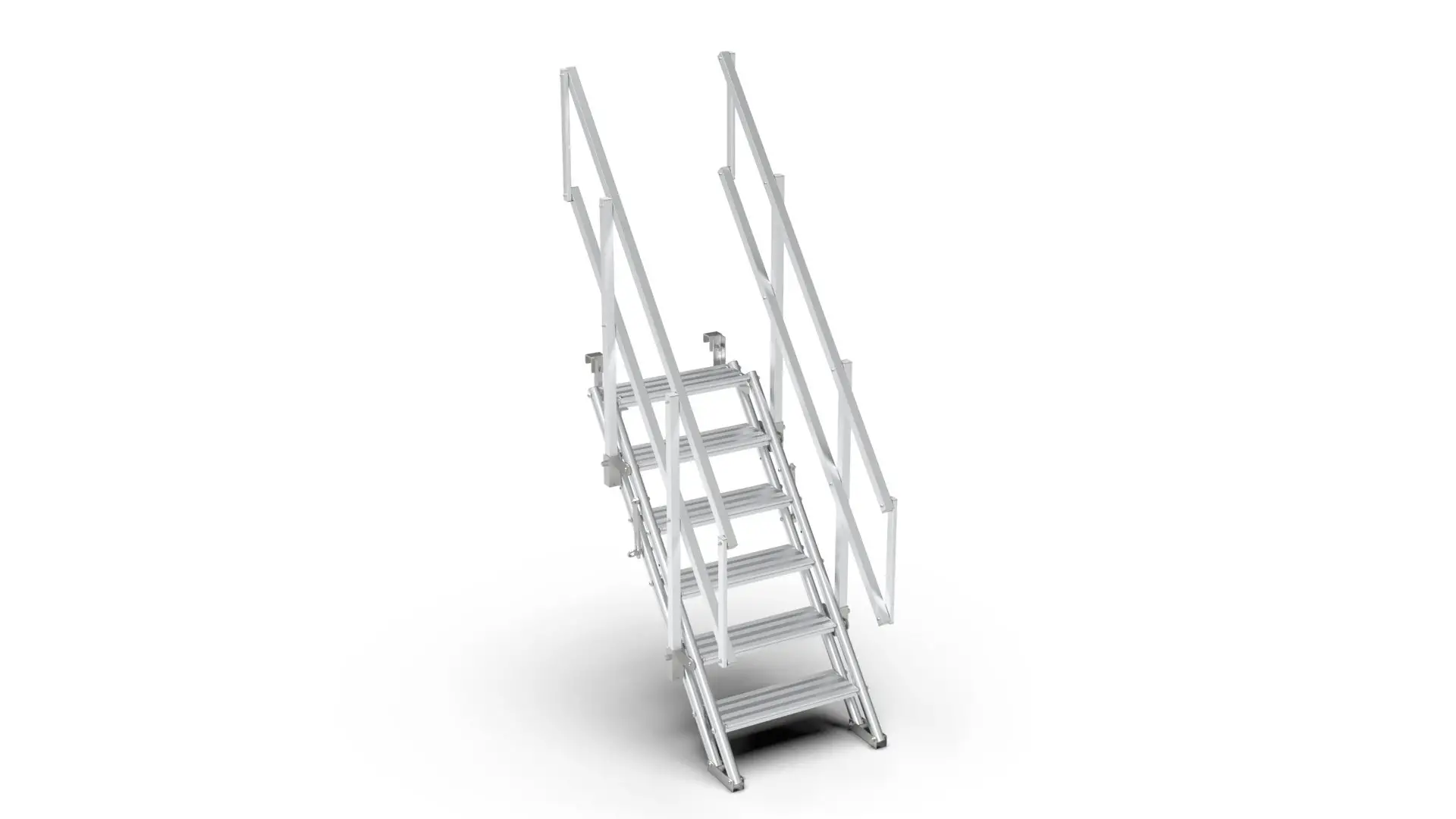

  • 6 Tread (Height adjustment 1030-1493mm)
  • 9 Tread (Height adjustment 1477-2106mm)
  • 12 Tread (Height adjustment 1925-2769mm)

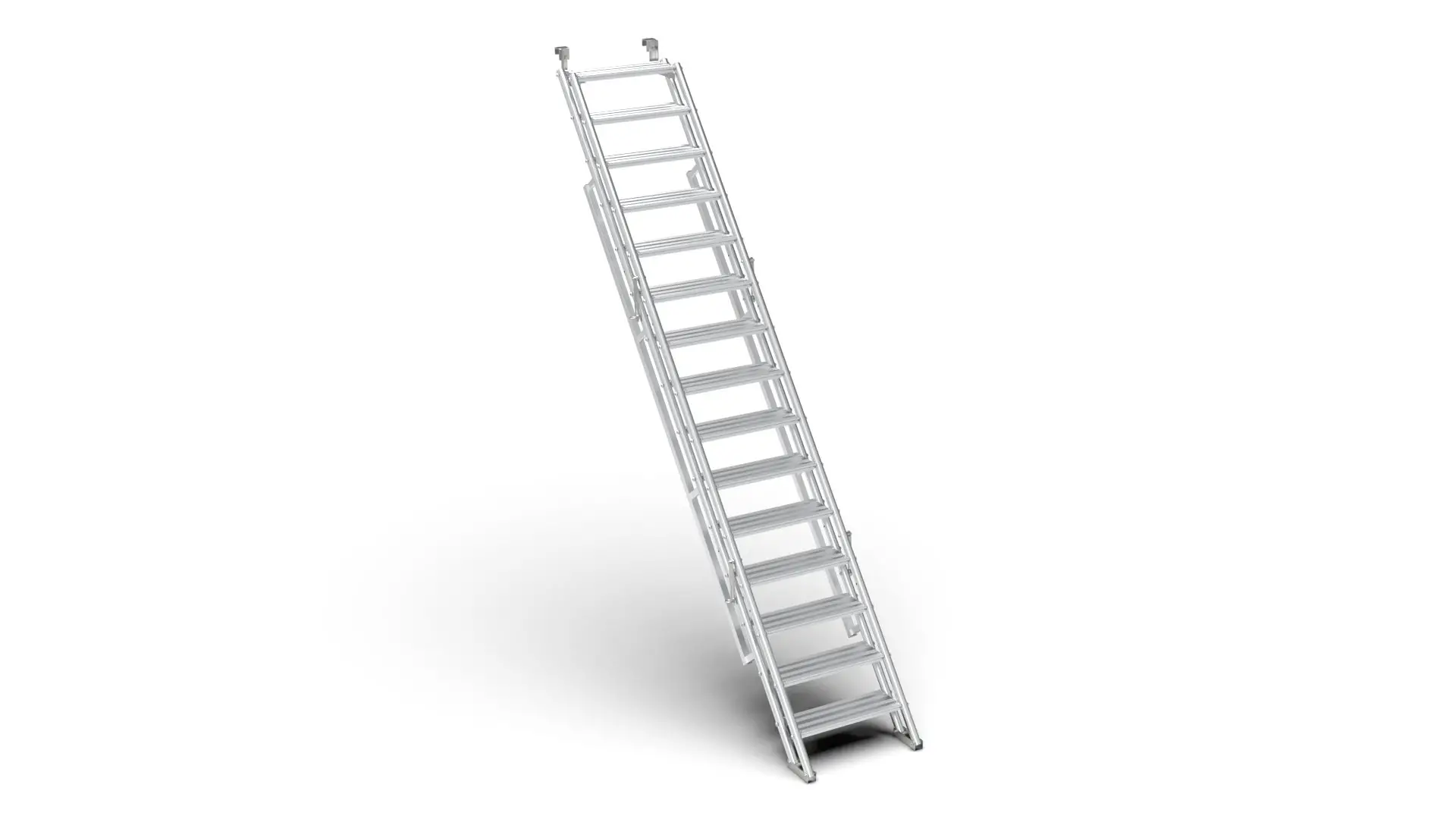

  • 15 Tread (Height adjustment 2372-3431mm)
• Lightweight all-aluminium design

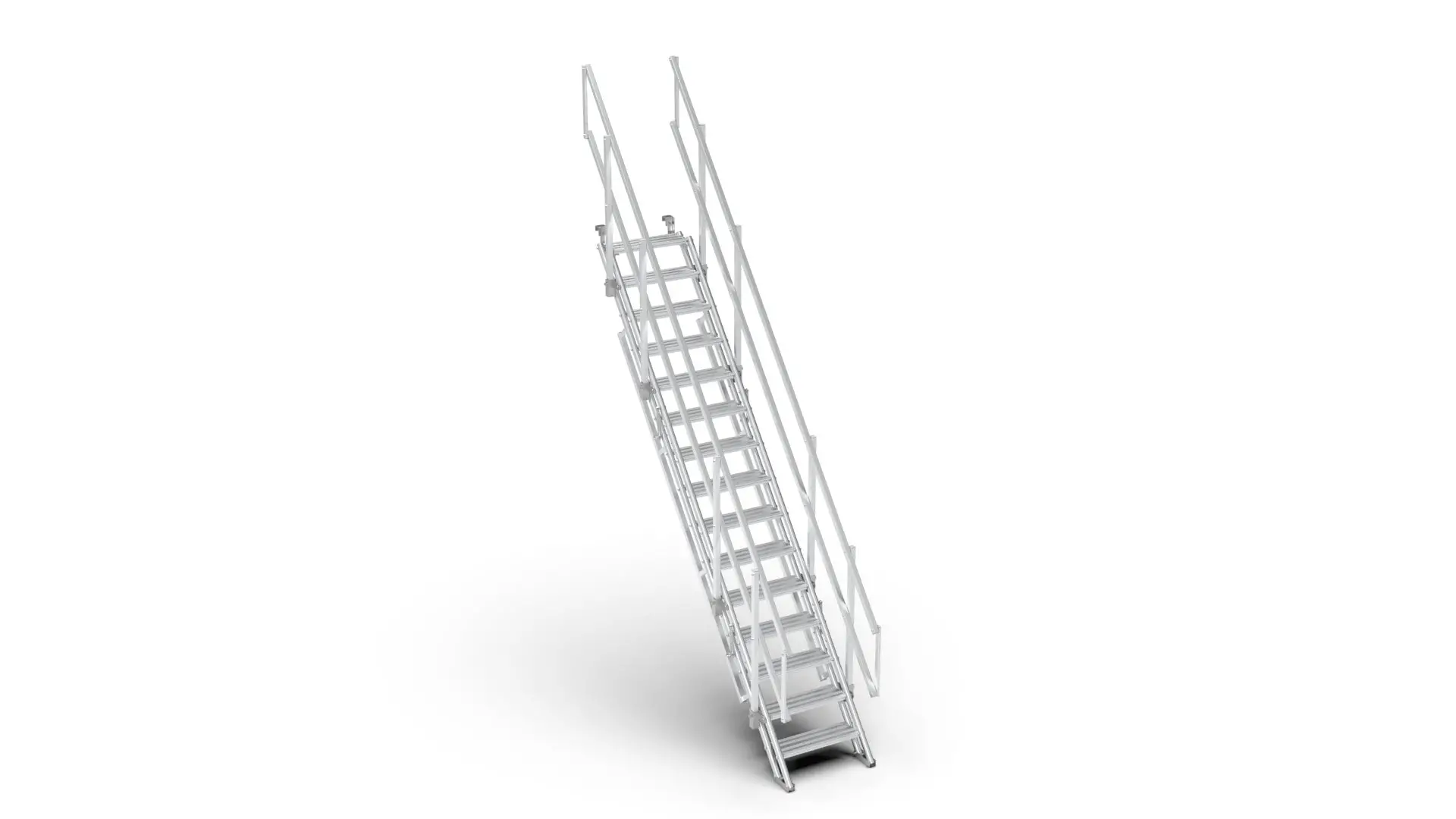

• Quick to fit proprietary handrails available
• Safe and slip-resistant treads through all seasons
• 200Kg UDL tread loading
• Compatible with 48.3mm scaffold tubing
• Standard bolted design for simple use & repair
• Corrosion resistant aluminium for maximum life
• British manufactured
• Fully compliant to BS EN 12811

DOWNLOADS

• Alto Universal Stair - Technical Information

  1.12 Mb - pdf

• Alto Universal Stair - Specification & Key Features

  1.36 Mb - pdf

• Alto Universal Stair - Assembly Guide

  1.19 Mb - pdf
