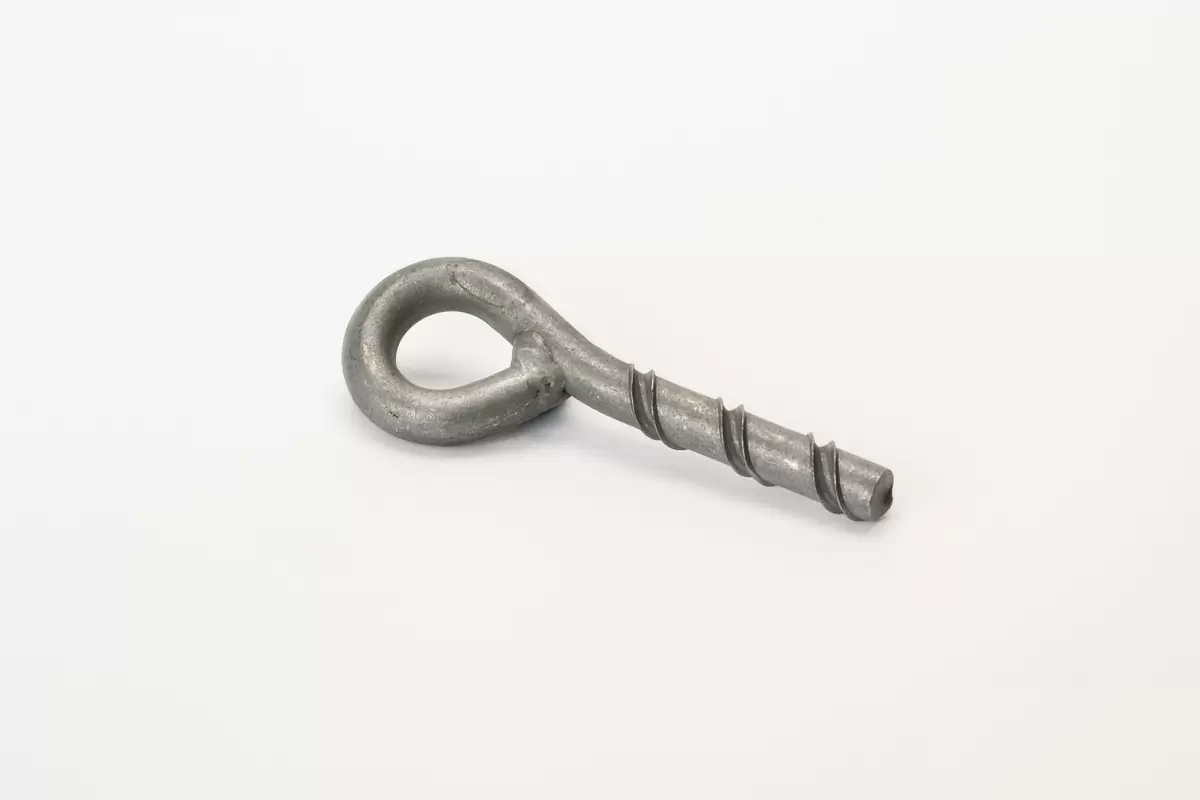

Like the Screwbolt, the Excalibur Eyebolt is very versatile with a simple and fast installation process. Giving a close to the edge ability due to its non expanding design, it provides exceptional strength and immediate load capacity in many substrates. Available in various diameters for all projects, giving a cost effective solution. Suitable for scaffold, formwork and many other applications.
We also stock hook fittings and scaffold tube with hooks for use with the Excalibur Eyebolt.
| Eyebolt Diameter | Eyebolt Internal Diameter | Clearance Hole Diameter | Safe Load on eye | Max Fixing Thickness | Thread Length ‘B’ | Clearance Depth ‘C’ | Box Quantity | Order code: |
|---|---|---|---|---|---|---|---|---|
| 12mm | 22mm | 15mm | 16.39 kN | – | 75 | 24 | 25 | EYB 12 / 075 |
| Drill Bit Diameter | Concrete and Brick | 12.0mm |
| Soft Materials | 11.0mm |
| Material | Embedment Depth (mm) | Tensile Load kN. | Shear Load kN. | |||
|---|---|---|---|---|---|---|
| Ultimate | Safe | Ultimate | Safe | |||
| Concrete | 60 N/mm² | 60 | 38.70 | 12.90 | – | – |
| 60 N/mm² | 90 | 69.00 | 23.00 | 59.80 | 19.93 | |
| Concrete | 30 N/mm² | 60 | 26.50 | 8.83 | – | – |
| 30 N/mm² | 90 | 43.00 | 14.33 | 59.80 | 19.93 | |
| Engr. Brick | 100 N/mm² | 45 | 20.00 | 6.67 | – | – |
| Semi.Engr. | 70 N/mm² | 45 | 15.00 | 5.00 | – | – |
| Fletton | 20 N/mm² | 45 | 15.80 | 5.27 | – | – |
| Butterly | 20 N/mm² | 45 | 5.10 | 1.70 | – | – |
| Hemelite | 3.5 N/mm² | 75 | 12.10 | 4.03 | – | – |
| Lignacite | 3.5 N/mm² | – | – | – | – | – |
| Topcrete | 7.0 N/mm² | 75 | 18.9 | 6.3 | – | – |
| Material | Boron Steel BS3111/9/2.1.A |
|---|---|
| Finish | Zinc & Yellow passivated as standard, or mechanical zinc |
| Other finishes | Other platings & finishes are available to special order subject to quantity |
| Tensile strength | 800N/mm2 Case hardened |
| Other sizes | Other lengths of all diameters are available to special order subject to quantity |
| Embedment concrete and brick | Minimum recommended is 4.5 × bolt diameter |
| Soft block | Minimum recommended is 75mm |
ALL DIMENSIONS IN MILLIMETRES (MM)
